Singbar Specification Sheet
General Specifications
- Model : DX100
- Type : Home Karaoke System
- Color : Black
Electrical Specifications
- Amplifier Output : 2.1-Channel stereo output
- L/R Tweeter : 2.5 inch 4Ω 5W * 2 pcs
- L/R Midrange : 2.75 inch 8Ω 20W * 2 pcs
- Bass : 5.25 inch 4Ω 50W * 1 pc
- Output Power : TOTAL: 100W
- Tweeter: 10W (4Ω 1% distortion)
- Midrange: 40W (8Ω 1% distortion)
- Bass: 50W (4Ω 1% distortion)
- THD+N (Distortion) : 1W 1KHz < 0.2%
- Impedance : 4Ω2 + 8Ω2 + 4Ω*1
- SNR (Signal-to-Noise Ratio) : >80dB
- Frequency Range : 50Hz-20KHz
- Treble and Bass Adjustment : ±12dB
- Music 5-Band Equalization : ±8dB
- Microphone 5-Band Equalization : ±8dB
- Music Effector: Virtual Surround (KTV, music, movies, news, theatre (3D sound))
- Mic Effector : Reverb, Delay, Mic Volume, Dry/Wet Sound, 6 Levels Anti-Whistling, Active Noise Cancellation
- Microphone Modes : POP, PRO, DIY, Original
Safety Features
- Security Protection : Short-circuit, over-current, overload, over-temperature, over-voltage, lightning protection
Microphone Input

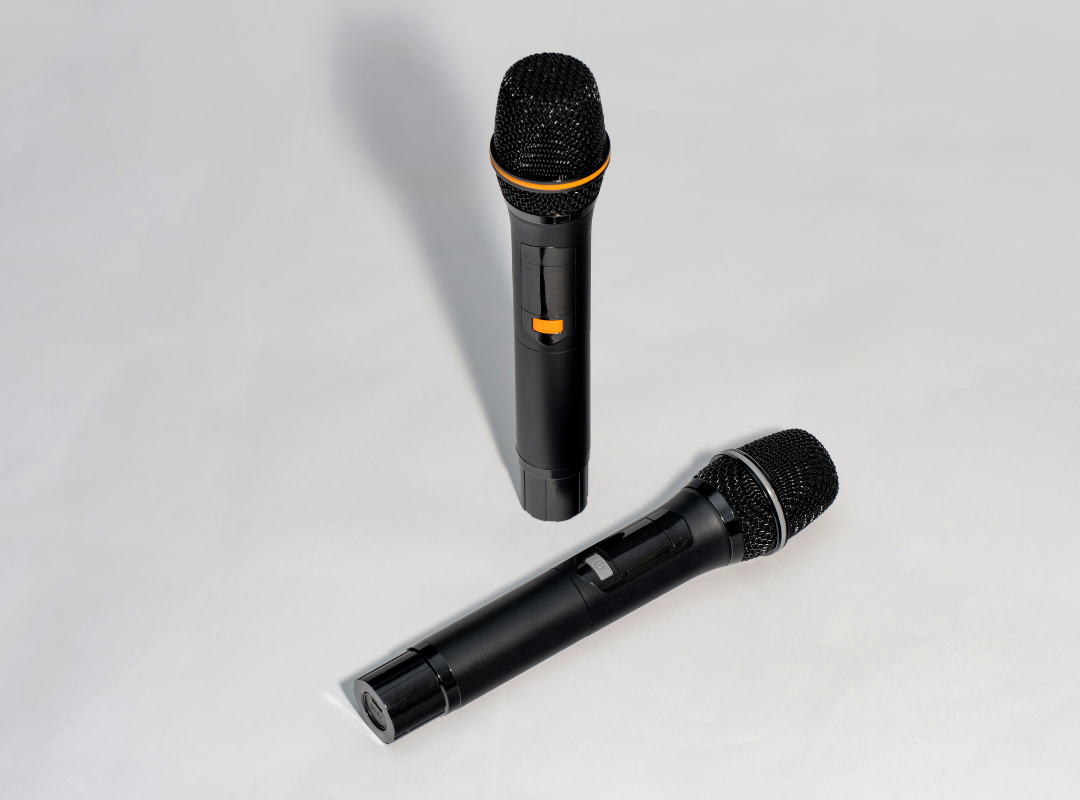

- Wireless Microphone Input : 2 pcs U-band digital wireless microphone inputs
- Wired Microphone Input : 1 pc (6.5mm MIC jack)
- U-band Digital Wireless Microphone : 640MHz-670MHz, 30 meters transmission distance
- Microphone Core Model : 1 pc (6.5mm MIC jack)
- Microphone Charging Port : 1 pc (6.5mm MIC jack)
- Microphone Batteries :18650 battery (2 pcs)

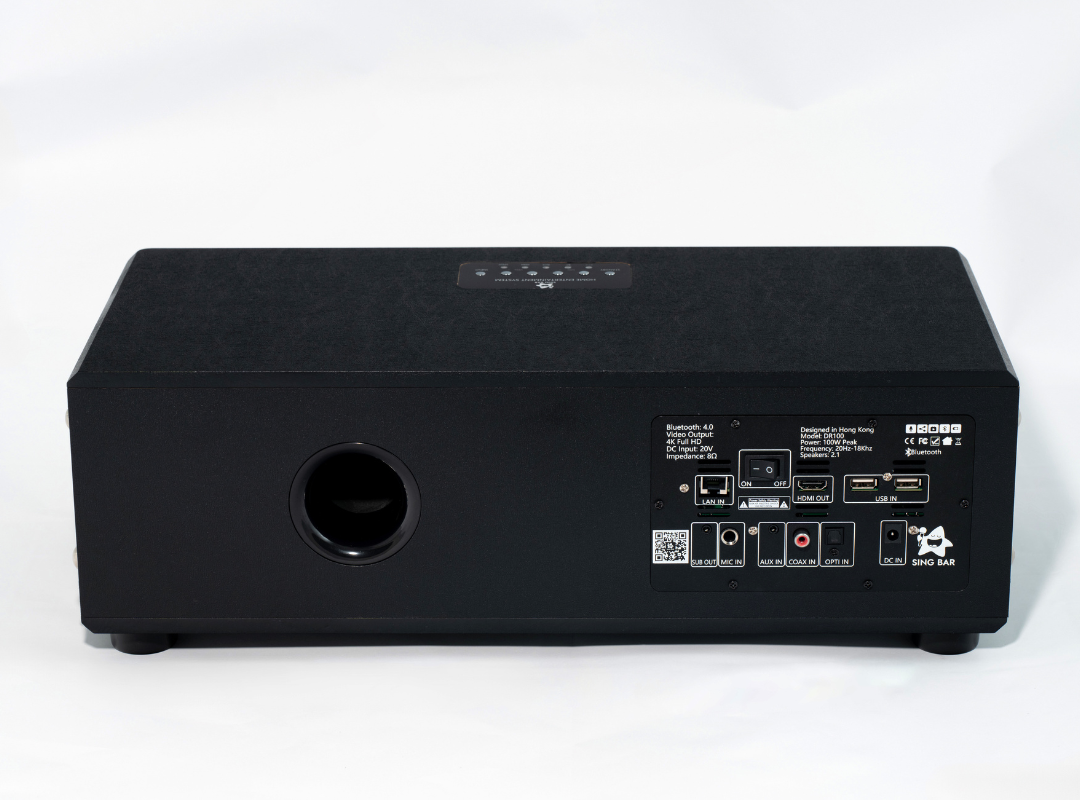

Audio Output
- Digital Output for Song Machine : HDMI output
Audio Input
- Analogue Stereo Input : 2-channel stereo input
- Optical Input : PCM Stereo Input
- Coaxial Input : PCM Stereo Input
- Auxiliary Input : 3.5mm
Bluetooth Playback
- Bluetooth Version : V5.1
- Bluetooth Connection : Auto-connect
- Bluetooth Pairing : Auto-pairing when no connection
- Bluetooth Name: Singbar
USB Playback
- USB Port : USB2.0 and USB3.0
- USB Device : Lossless playback on USB stick
Supported Formatsk
- Video : H265, H264, VP9/VP6/VP8, MPEG1/MPEG2 MPEG4, AVS+/AVS VC-1
- Audio : MPEG-1, MPEG-2 (L1/L2/L3), MP3, AAC-LC, HE-AAC V1/V2, APE, FLAC, OGG, AMR-NB, AMR-WB, G.711 (u/a)
Network
- Wireless WiFi : Built-in, 2.4G
- Wired Network Port : 100Mbps
Power Supply Parameters
- Input Voltage : AC 100-265VAC, 47-63Hz
- Output Voltage : 100Mbps
- Plug Connector : 5521
Singbar Home Entertainment System
$899.00
Singbar Home Entertainment System
$899.00
Description
Professional Sound. Unlimited Entertainment.
Enjoy crisp vocals and rich instrumentals with expertly engineered high-frequency tweeters, full-bodied mid-range speakers, and a powerful wireless subwoofer that delivers deep, room-shaking bass.
With Line-out support, expand your sound setup instantly, while the smart, user-friendly interface makes song selection as easy as scanning a QR code. Pair with your smartphone and take advantage of Smart Voice controls for a seamless singing experience.
